In the ever-evolving landscape of electrical engineering, solid-state AC-AC transformers have emerged as groundbreaking technology poised to transform power distribution across various industries. These innovative devices represent a significant leap from traditional transformers, offering enhanced efficiency, reliability and performance.
As we explore the world of solid-state transformer technology, we'll see how these advanced components are reshaping the future of power conversion and distribution, providing solutions to long-standing challenges in electrical systems.
What Are Solid-State AC-AC Transformers?
Solid-state AC-AC transformers, also known simply as solid-state transformers (SSTs), are advanced power electronic devices that convert alternating current (AC) from one voltage level to another. Unlike traditional transformers that rely on electromagnetic induction, SSTs utilize power semiconductor devices and high-frequency switching techniques to achieve voltage transformation.
These transformers play a crucial role in modern electrical systems by offering greater control over power flow, improved power quality and the ability to interface between different types of power systems. They can address the growing demands of smart grids, renewable energy integration and the increasing complexity of power distribution networks.
In contrast, conventional distribution transformers lack the sophisticated voltage and current-regulation capabilities of SSTs. Traditional transformers typically rely on fixed turn ratios and have limited voltage adjustment options, such as tap changers, which can only provide discrete steps of voltage regulation. This limitation makes them less adaptable to the dynamic voltage fluctuations common in modern power systems, especially those with high penetration of renewable energy sources.
How Solid-State Transformers Work
To fully appreciate the impact of solid-state transformer technology, it's essential to understand the fundamental principles behind its operation and how it differs from that of conventional transformers.
Basic Operating Principles
Solid-state AC-AC transformers operate on the principle of power electronics. They typically consist of three main stages:
- AC-DC conversion: The input AC voltage is rectified to DC.
- DC-DC conversion: The DC voltage is converted to a different level using high-frequency switching.
- DC-AC inversion: The DC is inverted back to AC at the desired output voltage and frequency.
This process allows for precise control of voltage, frequency and power flow. Conversely, traditional transformers use electromagnetic coupling between primary and secondary windings to change voltage levels, which limits their flexibility and control capabilities.
The high-frequency switching employed in SSTs, typically in the range of several kilohertz to tens of kilohertz, enables the use of much smaller magnetic components compared to traditional 50/60-Hertz (Hz) transformers. This high-frequency operation is vital to the SST's compact size and weight reduction.
Moreover, the multistage conversion process in SSTs allows for the implementation of advanced control algorithms. These algorithms can optimize power flow, respond to grid conditions in real time and even provide ancillary services to the grid, such as voltage regulation and harmonic compensation. This control and flexibility level is simply impossible with conventional transformer technology.
Key Components and Materials
The heart of a solid-state transformer consists of several critical components:
- Power semiconductor device: The primary switching elements are insulated-gate bipolar transistors (IGBTs) or metal-oxide-semiconductor field-effect transistors (MOSFETs).
- High-frequency transformers: These smaller, lighter transformers operate at frequencies much higher than the line frequency, allowing for reduced size and weight.
- Control systems: Microprocessors or digital signal processors (DSPs) manage the complex switching operations and overall system performance.
- Passive components: Capacitors and inductors play crucial roles in filtering and energy storage within the transformer.
The materials used in SSTs can operate efficiently at high frequencies and effectively manage heat. Advanced magnetic materials, such as nanocrystalline cores, are often employed to minimize losses and improve performance.
Advantages of Solid-State AC-AC Transformers
Solid-state transformer technology offers numerous benefits over traditional transformers, making them increasingly attractive for various applications.
Enhanced Efficiency
Solid-state transformer efficiency is significantly higher than that of conventional transformers, particularly under partial load conditions. This improved efficiency translates to reduced energy losses and lower operating costs.
The efficiency gains of solid-state transformers are particularly pronounced in scenarios with variable loads or when interfacing between systems with different voltage levels or frequencies. In renewable energy applications, for instance, SSTs can more efficiently convert the variable output of wind or solar systems to grid-compatible power, maximizing energy harvest and minimizing losses.
Improved Power Quality

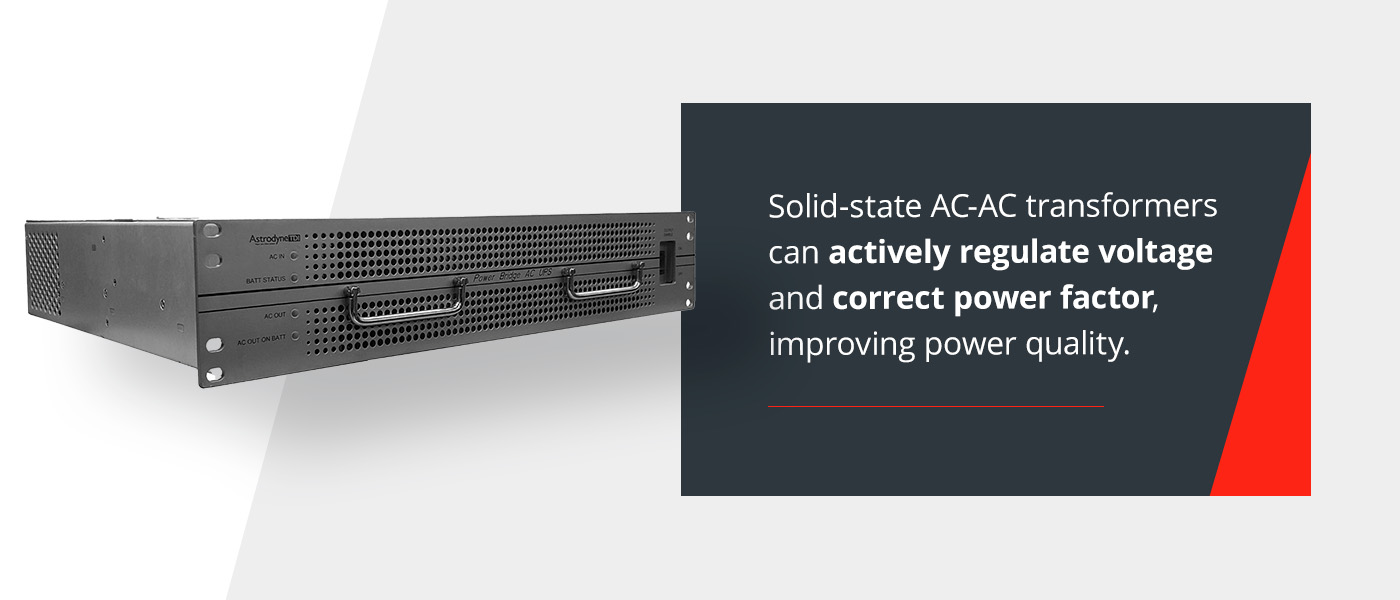

Solid-state AC-AC transformers can actively regulate voltage and correct power factor, improving power quality. This capability is particularly valuable in environments sensitive to power fluctuations, such as semiconductor manufacturing facilities or hospitals with critical medical equipment.
The power quality improvements offered by SSTs extend beyond simple voltage regulation. They can also mitigate harmonics, compensate for voltage sags and swells and provide uninterruptible power supply (UPS) functionality when equipped with energy storage.
Enhanced Reliability
SSTs offer improved reliability compared to traditional transformers. The absence of moving parts in solid-state transformers reduces the risk of mechanical wear and tear. The advanced control systems in SSTs can detect and respond to potential issues before they escalate, preventing catastrophic failures and extending the transformer's life span.
Bidirectional Power Flow
Unlike conventional transformers, solid-state AC-AC transformers can facilitate bidirectional power flow, making them ideal for integrating renewable energy sources and energy storage systems into the grid. This feature is crucial for the development of smart grids and microgrids.
Superior Performance
Solid-state transformers perform better than conventional transformers in several aspects. They offer faster response times to voltage fluctuations, more precise voltage regulation and better harmonic suppression. Their superior performance is particularly beneficial in applications requiring high power quality and stability, such as in sensitive industrial processes or advanced medical equipment.
Applications of Solid-State Transformers
The versatility of solid-state transformer technology has led to its adoption across various sectors, revolutionizing power distribution in numerous applications.
Medical Applications
In the medical field, solid-state transformers ensure reliable and clean power for sensitive equipment. Their compact size and superior power quality make them ideal for use in:
- Medical carts: SSTs provide stable power for mobile diagnostic equipment, ensuring consistent performance throughout a health care facility.
- Surgical robotics: The precise voltage control offered by solid-state AC-AC transformers is essential for the accurate operation of robotic surgical systems, enhancing patient safety and surgical outcomes.
Industrial Applications
Solid-state transformer applications in the industrial sector are wide-ranging. They offer improved efficiency and control in manufacturing. SSTs enable precise control of motor drives and automation systems, increasing productivity and energy savings. In steel mills and other energy-intensive industries, SSTs help manage larger power loads more efficiently, reducing energy costs and improving process control.
Commercial Applications
Solid-state transformer technology also benefits the commercial sector. SSTs facilitate the integration of renewable energy sources and energy storage systems, supporting green building initiatives and reducing operational costs. In smart city projects, SSTs enable more efficient power distribution and management of electric vehicle charging stations, street lighting and other municipal services.
Power Your Future With Solid-State AC-AC Solutions
Solid-state AC-AC transformers represent a significant advancement in power distribution technology, offering unparalleled efficiency, flexibility and performance across medical, industrial and commercial sectors. Their superior efficiency, improved power quality, compact size and enhanced reliability make them a game-changing technology in power electronics.
At Astrodyne TDI, we've harnessed this innovative technology in our AC-AC uninterrupted power supplies. Our expertise in solid-state transformer technology ensures reliable, efficient power solutions for your unique needs. Explore our cutting-edge, customizable product offerings today.
Contact us to learn more about our products and process and let us find a tailored solution that fits your unique needs. If you already know what you need, request a quote now.
