Uninterrupted Power Supply for Critical Applications

A power failure in an operating room, even just for a moment, can have dire consequences, but our UPS solutions will switch your system to a backup power supply instantly with no lapse, providing instantaneous protection to ensure the continuous operation of critical equipment.

Uninterruptible Power Systems

What is a medical-grade UPS system? A UPS system from Astrodyne TDI is a backup plan for losing AC power. These systems recover necessary power for medical devices and imaging during surgical procedures for successful results.

How does the power supply work in a UPS? The system consists of four main functional components: batteries, an inverter, a rectifier, and a static bypass switch. These components work together to convert and deliver continuous, high-quality electricity to protect critical devices during power disturbances.

Medical-Grade UPS Systems

Simply having a backup generator at your facility is not enough. Generators can take upwards of 30 seconds or more to power on, which can be lethal during robotic surgery. Implementing a UPS system from Astrodyne TDI offers ultimate reliability and performance when your patients and staff need it the most.

Astrodyne TDI UPS key features include a compact 2U-high, 19-inch rack-mount design for efficient integration into medical equipment setups, along with a reliable rechargeable battery system that automatically provides backup power in the event of a primary AC power failure, ensuring continuous and uninterrupted operation of critical equipment.

PowerBridge Medical Uninterrupted Power Supplies (2)

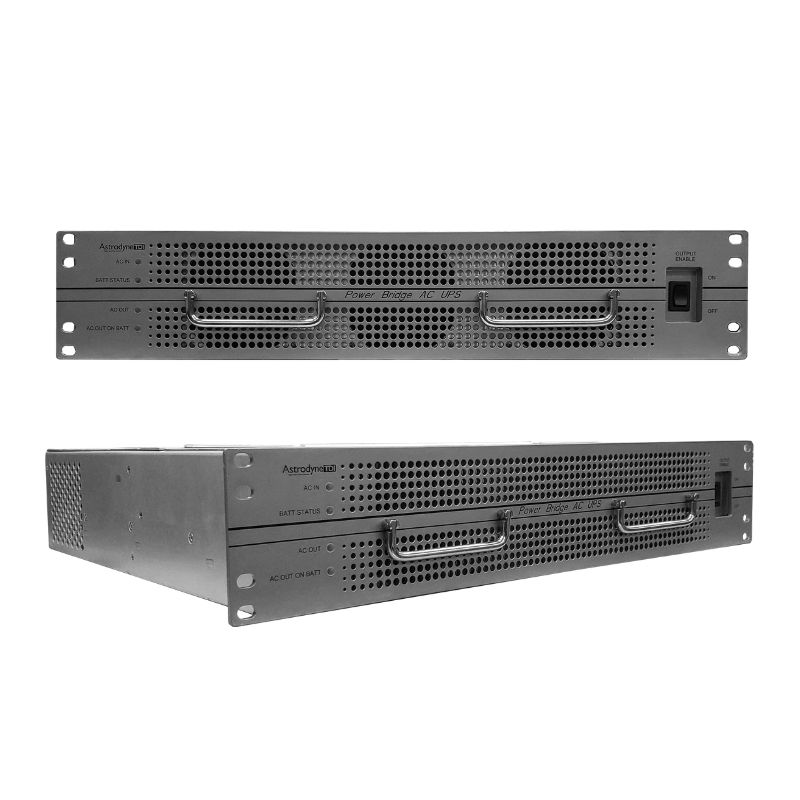

The PowerBridge™ Medical-Grade UPS

Online UPS with continuous 2 kVA output power for mission-critical equipment in medical and industrial environments
2MOPP / 2MOOP patient isolation built in — eliminates the need for an external isolation transformer
2U-high, 19-inch rack-mount form factor for efficient system integration
Embedded LiFePO₄ lithium-ion iron phosphate battery technology with individual cell monitoring and temperature compensation for optimized performance and long life
Up to ~10-year extended battery life with advanced battery management
Runtime options delivering >2 minutes at full 2 kVA load (and longer at reduced load)
AC input: Panel-mount IEC 60320 C20 connection
Four IEC 60320 C13 AC output outlets for multiple load connections

Learn More

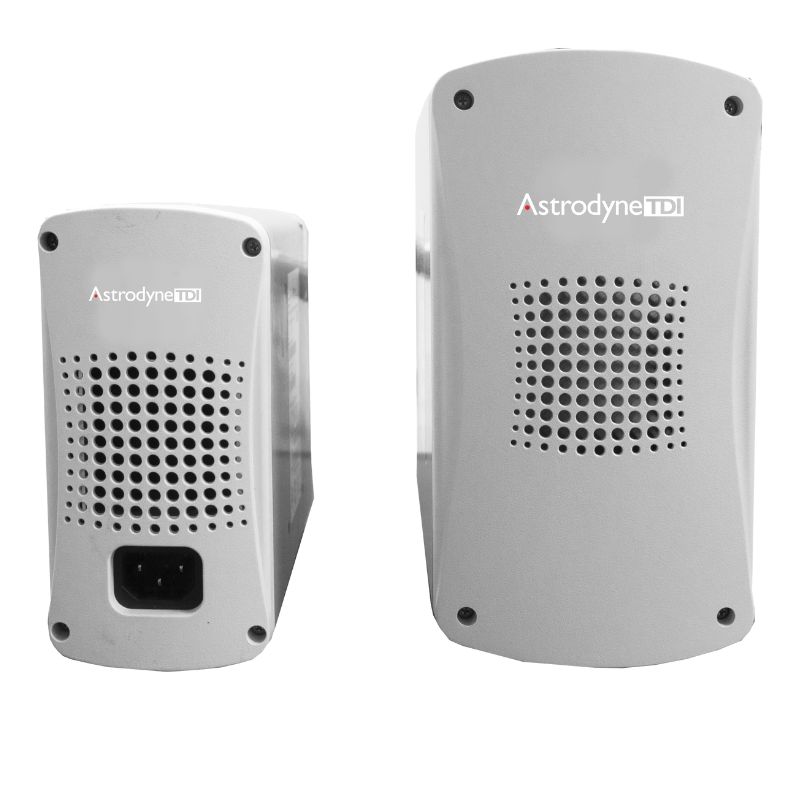

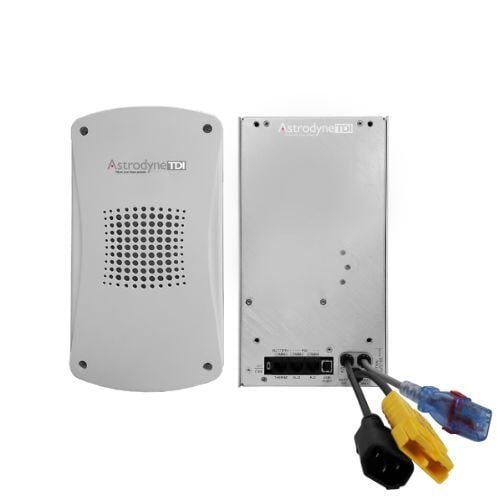

MediPower Medical Mobile UPS

Universal AC input: 90–264 VAC, 47–63 Hz for worldwide compatibility
Double-conversion online UPS providing pure sine wave AC output for sensitive medical equipment
Rated ~170–175 VA output power at 120 VAC/60 Hz
4000 VAC isolation between input and output for enhanced safety and noise immunity
Integrated rapid battery recharge (to 90 % SOC in ~2.5 hours)
Supports simultaneous battery charging while supplying a load
Lithium-iron phosphate (LiFePO₄) battery recommended for long life and reliability
Compact, rugged aluminum enclosure with lightweight form factor (~5.6 lb)
Advanced communication options (Modbus and SMBus) for system monitoring and control

Learn More

View All UPS Products

View Catalog

Medical Applications of Uninterruptible Power Supplies

For more than 60 years, Astrodyne TDI has delivered reliable power solutions for safety-critical environments where uptime is essential. Our medical-grade uninterruptible power supply (UPS) systems are designed to ensure continuous, isolated power for sensitive healthcare equipment, supporting patient safety, system reliability, and regulatory compliance across a wide range of medical applications.

Medical

We offer a selection of safety-compliant power supplies specifically designed for diagnostic equipment, personal health devices and other medical machinery. Our catalog includes safety-compliant power supplies, providing industries with dependable custom solutions.

Tell Me More

Medical Grade UPS System

A power failure in an operating room even just for a moment can have dire consequences, but our UPS solutions will switch your system to a backup power supply instantly with no lapse.

The PowerBridge™ Medical-Grade UPS

Aside from adding a glitch-free transition to backup power, the Power Bridge™ has the following features:

2MOPP/2MOOP
Lithium-ion battery technology with individual cell monitoring and temperature compensation
2kVA output power in a 2U-high, 19-inch rack space
Two to five-minute runtime at 2kVA
Up to 10-year extended battery life
Designed with requirements of NAVSO P3641A, HALT, DFMEA, and HASS
Rear panel circuit breaker (input circuit breaker and four output circuit breakers)
Front panel indicators (AC input status, AC output status, battery status, and AC output powered by battery)

Benefits of a UPS System

UPS systems are more than just a source of backup power and an extra layer of protection for your equipment. They offer plenty of other benefits regardless of your industry, including:

Optimal performance: Frequent fluctuations can lead to downtime, affecting performance and productivity. UPS systems minimize delays in your operations, especially during critical moments. Modern UPS systems are designed for high efficiency and are energy efficient, helping to reduce operational costs and improve overall energy usage.
Data protection: Power losses leave your network vulnerable to cyberattacks and data breaches. A UPS can give your employees time to save their work and safely shut down their computers and other IT equipment during power interruptions. This prevents your data from disappearing and reduces additional work. It also helps you stay online until power is restored.
Service continuity: Customer impression is vital to your business’s reputation. Prevent power outages from affecting the continuity of your service and maintain a good image among your target market. Downtime can be extremely costly, with power outages costing the U.S. economy $150 billion annually and businesses losing up to $9,000 per minute during outages.
Industry compliance: UPS systems have a wide range of industry applications. Having a UPS system helps you maintain industry compliance and avoid harsh penalties for your business, if applicable.
Critical infrastructure and seamless transitions: UPS systems are essential in modern power supply networks, guaranteeing seamless transitions between the main source (mains supply) and backup power. They help keep critical infrastructure such as data centers, hospitals, and emergency services operational during outages, minimizing risks and ensuring continuous operation.

UPS systems provide surge protection, supply power during outages, and their UPS functions include maintaining stable electricity from the input power source. The reliability and quality of electricity from the mains supply or main source is critical for UPS performance. Available connections, such as a USB port, allow users to connect the UPS to a computer for monitoring and managing UPS functions. UPS power ratings determine how many devices can be supported, making uninterruptible power supply systems vital for protecting sensitive IT equipment and ensuring business continuity.

Contact Astrodyne TDI for Reliable UPS Systems

Whatever industry you're in, Astrodyne TDI wants to keep your system running smoothly for your stakeholders. We design and manufacture innovative power solutions for a variety of applications worldwide. Our in-house team of experts can design and manufacture solutions according to your specific requirements. Contact us today for more information about our products and fabrication services, or fill out our form to request a quote.
