Comprehending the Distinct Power Needs of Medical Beds

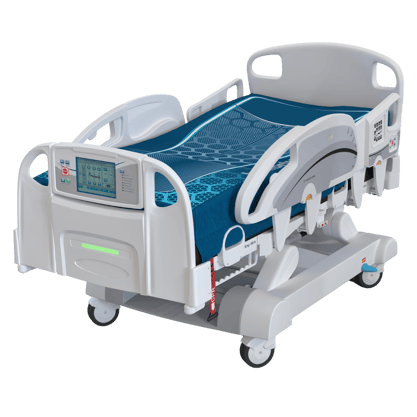

Astrodyne TDI partnered with a well-known medical bed manufacturer that offers high-performance, low-profile medical beds designed for various care settings, such as medical surgery, high-acuity care, palliative care, bariatric care, and behavioral health.
Collaborating with a medical bed manufacturer, Astrodyne TDI faced multiple power-related challenges. A key requirement was to ensure sufficient isolation between the primary and secondary circuits. Additionally, the design needed a low leakage current and an integrated thermal switch. Compliance with 60601-1 testing standards was essential. The manufacturer also emphasized the importance of minimizing electromagnetic interference (EMI). Securing safety certifications like UL, cUL for 60601-1, and CE marking, along with 2MOPP (Means of Patient Protection), was necessary to ensure patient safety. It was crucial to maintain specific insulation, creepage, clearance distances, and dielectric strength of 4kV between the primary and secondary circuits. High efficiency was another critical element that had to be incorporated into the design.
A Toroidal Transformer Compliant with All Medical Bed Standards
The Astrodyne TDI team introduced a product with a toroidal design that meets medical-grade standards, guaranteeing exceptional safety and quality. Its low-profile structure makes it adaptable for a range of applications. Furthermore, we provide custom design solutions to cater to specific requirements. Our value-added services encompass harness assembly, as well as housing and connectors. We also offer blanket order options and warehouse stockings for your convenience.
Astrodyne TDI provides cutting-edge medical-grade toroidal transformers specifically crafted to fulfill the stringent requirements of the healthcare sector. These transformers are compact and lightweight, making them ideal for use in space-constrained applications. A key feature of our toroidal transformers is their exceptional efficiency, which results in notably reduced core losses. This efficiency not only boosts performance but also aids in energy conservation. Beyond their efficiency, our transformers are designed to minimize noise, significantly decreasing mechanical hum and ensuring a quieter operational environment. Another major benefit of our toroidal design is its excellent thermal management, offering superior heat dissipation. This feature guarantees the optimal functioning and extended lifespan of the equipment in which they are used. Additionally, our transformers comply with the highest safety standards, incorporating 2MOPP insulation and meticulously designed creepage and clearance distances. This commitment to operational safety safeguards both the devices and the patients who depend on them, making our toroidal transformers a perfect fit for medical applications.
Providing the Medical Industry with the Best Power Solution Available
Astrodyne TDI provides several distinct advantages, such as the flexibility to adjust lead times to accommodate demanding development timelines. The implementation of toroidal designs effectively minimizes electromagnetic interference (EMI), making these components particularly ideal for medical applications. Furthermore, they are built with premium copper and steel, ensuring enhanced durability. Tailored solutions can be crafted to satisfy specific electrical needs and dimensions. Additionally, safety compliance is a top priority, with adherence to the IEC 60601-1 standard, along with UL, cUL, and CE Mark certifications.
