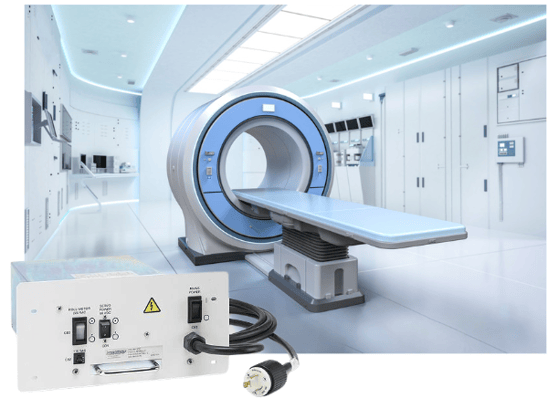

Medical Power Distribution Units (PDU)
Astrodyne TDI medical PDUs offer the isolation benefits of our transformers, the voltage stabilization of our power supplies, and the noise reduction features of our EMI filters, addressing the specific design needs of demanding applications.
Power Protection ⚡
The PDU provides an outstanding solution for power distribution, incorporating advanced safety features, remote communication, output monitoring, and control functions. In medical settings, PDUs ensure a dependable power supply to essential equipment, thereby improving patient safety and care. They meet the power demands of medical devices, protect equipment with integrated power conditioning minimize electrical interference, and enable real-time monitoring and control.
PDUs are crucial components of a testing system due to their capabilities, and custom solutions may include fully integrated primary and secondary power sources. Establishing a power layout is essential to ensure each component receives the necessary electricity. Collaborating with an experienced custom PDU supplier like Astrodyne TDI mitigates such risks as they work with your engineers to deliver a comprehensive design.
.png)
.png)
.png)
.png)
.png)
.png)
.png)
.png)
Key Features of Modern PDUs
Modern PDUs come equipped with a variety of features designed to enhance their functionality and reliability. One of the primary features is the ability to provide multiple output voltages, both AC and DC, from a single source. This versatility ensures that different components within a system receive the appropriate power they need.
Additionally, modern PDUs offer configurations for different outlet types such as NEMA, IEC, and Shuko connectors. This adaptability ensures compatibility with a wide range of devices and applications. Surge protection for each output is another critical feature, safeguarding connected equipment from power spikes and surges.
Electrical Protection Mechanisms in PDUs
Electrical protection is a cornerstone of modern PDUs. These units are designed to protect downstream equipment from electrical surges, which can cause significant damage. The inclusion of surge protection for each output ensures that any fluctuations in power are managed effectively, preventing potential harm to sensitive equipment.
Moreover, PDUs often include circuit breakers and fuses as additional layers of protection. These mechanisms are crucial for preventing overloads and short circuits, thereby enhancing the overall safety and reliability of the system.

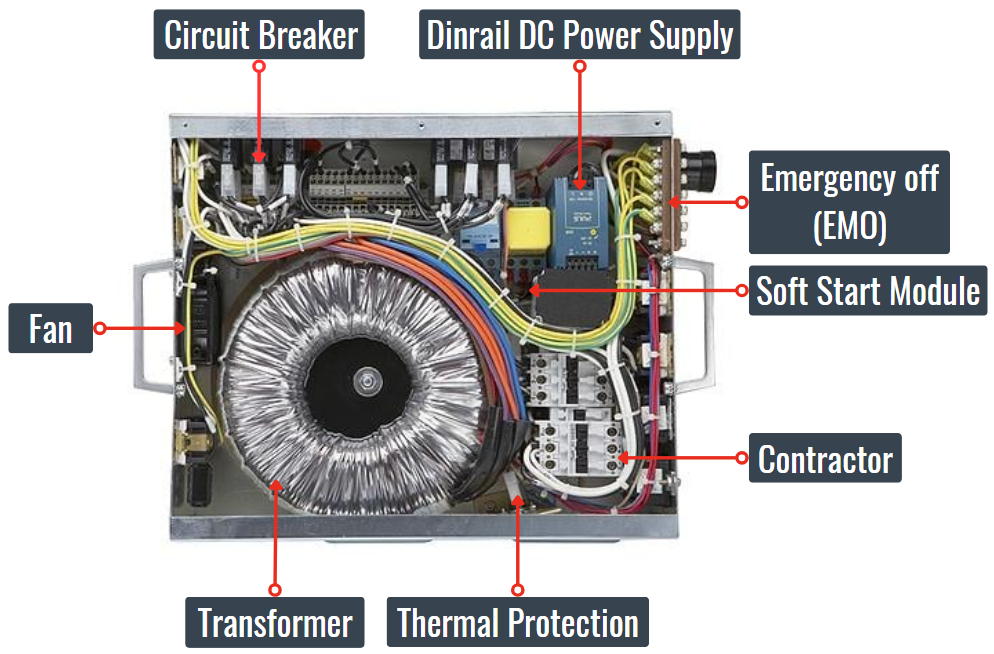

Why Choose Transformer in PDU's
- Integrated medical-grade transformer
- Engineered for space efficiency with tailored controls and distribution
- Available in single-phase and three-phase designs
- Power range: 1000VA - 10kVA (1P) / 25kVA (3P)
- Advanced power management
- Emergency Off (EMO) features
Applications:
MRI, CT scan, Imaging & treatment modalities, data center
-1.png?width=500&height=500&name=Rack-Mount%20Multi-Output%20Power%20Distribution%20Solution%20(13)-1.png)
Power Distribution Isolation & Management Units (PDIMUs)
PDIMUs provide the isolation of our Medical Isolation Unit, the voltage regulation and noise suppression, and the AC power distribution capabilities of our PDUs. Additionally, they feature intelligent soft start with sequential load distribution, voltage selectable input ranging from 100 Volt to 240 Volt, ultra-low output impedance (<0.5Ω), and an emergency circuit breaker.
Applications
PDIMUs are used with semi-conductor manufacturing and automatic test equipment, robotics, main frame computer systems, medical imaging, and medical lasers.
