Astrodyne Preview: 400 Watt 3×5 Series for Medical and Industrial Use


Mansfield, MA – Astrodyne Corporation, a leading supplier of specialized power solutions to the medical, industrial, military/aerospace and communications markets, is excited to give you a sneak peek of what’s coming out in the First Quarter for 2014! We’d like to introduce the ASM400 Series for Medical and Industrial market.

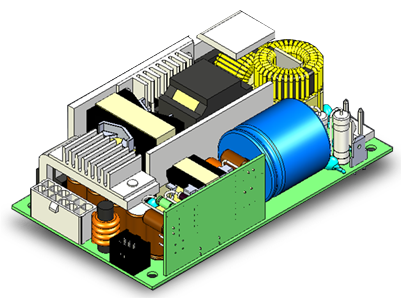

The ASM400 series has a compact, high density design with a whopping 19W/in3 in an open frame 3×5 inch form factor (400W @ 250LFM, 40°C, 250W with natural convection, 40°C). The series is less than 1U high -1.4in. It is designed to meet EN60601-1 3rd edition and has a Class 2 option for home use.

ASM400 offers a variety of Output ranging from 12 – 54 Volts and meets the EN 60601-1-2 conducted emissions. The series has an isolated 5V standby and 12V fan output. It also features a Low Leakage current design. This product uses highly advanced power conversion topologies to provide optimum efficiency and performance

This exciting series of new products will be available in Q1 2014..

Key Features

  • Compact, high density design – 19W/in³
  • Standard 3 in. x 5 in. footprint
  • Less than 1U high – 1.4 in.
  • High Efficiency – Up to 94%
  • Designed to meet EN60601-1 3rd edition
  • Class 2 (home use) version option
  • BF and CF- leakage current options
  • Meets EN 60601-1-2 Conducted emissions
  • Isolated 5V standby and 12V fan output
  • Remote On/Off and Power Okay signals
