Power supplies are critical in many industries, from health care to aerospace and defense. The correct power supply ensures you can maintain your operations if your primary resource fails and provides clean, reliable energy that limits damage to your system. Understanding a power supply's max output rating is essential to ensuring safe and efficient operations.
Introduction to Max Output Ratings
A power supply unit converts AC power from an energy source into DC power required for various applications. The components it can power depend on its maximum rating, typically measured in watts. It indicates how much energy a PSU can deliver to its connected parts.
The Importance of Max Output Ratings
Power supply max power ratings determine the amount of energy the power supply can safely deliver to the connected devices, making them essential for several reasons.
- Overload protection: Surpassing a power supply's maximum output rating can lead to overheating, voltage fluctuations and even complete power supply failure. Understanding maximum output ratings ensures you only support loads the power supply can handle and prevents damage to the power supply and connected devices.
- Device compatibility: Devices have varying power requirements. Knowing a power supply's max output rating helps you choose the correct one.
- Safety: Exceeding a power supply's max output rating can create potential hazards like electrical shorts, fire and damaged components. Adhering to max output ratings enables safe operations, reducing the risk of electrical hazards.
- Increased efficiency: Operating a power supply close to its max output rating can limit its efficiency and shorten its useful life. When you understand the max output rating, you can operate between the actual power draw and maximum output for optimal performance and power supply life span.
What Do Ratings Mean on Power Supplies?
Power supply ratings refer to PSU specifications like power efficiency, safety and maximum power output. An efficient power supply generates less heat, making more power available. Safety ratings mean the PSU meets regulatory standards, and you can use them without damaging your system.
The 80 PLUS voluntary certificate program ranks all power supplies based on efficiency, including how much power the unit wastes in the form of heat. These different PSU ratings give you an excellent idea of what you can expect from your power supply.
80 PLUS Bronze
A PSU with a PLUS Bronze certification meets entry-level requirements. It has an 82% efficiency at 100% load, meaning it loses the remaining 19% as heat. It's a good option for basic computer systems as it offers higher efficiency than non-certified models. It may also have features that make it an excellent choice for your system, such as higher power output.
80 PLUS Silver
80 PLUS Silver certification indicates a power efficiency of 85% at 100% load. It's suitable for computer systems requiring extra power. A PSU with a Silver rating often has additional features, including higher max power output and decent safety ratings.
80 PLUS Gold
An 80 PLUS Gold certification offers 87% efficiency at 100% load, excellent for high-performance systems. It keeps your system running optimally, allowing continuous operation while minimizing energy costs. These PSUs often have a longer useful life, additional safety features and improved cooling.
80 PLUS Platinum
A PSU with 80 PLUS Platinum certification provides 89% efficiency at 100% load, making it ideal for high-performance systems. They often have outstanding safety ratings and high maximum power output.
80 PLUS Titanium
The 80 PLUS Titanium certification indicates 90% efficiency at 100% load. As the highest certification level in the 80 PLUS program, this is ideal for high-performance systems that can run 24/7 with minimal heat loss and reduced energy costs.
Interpreting Max Power Rating

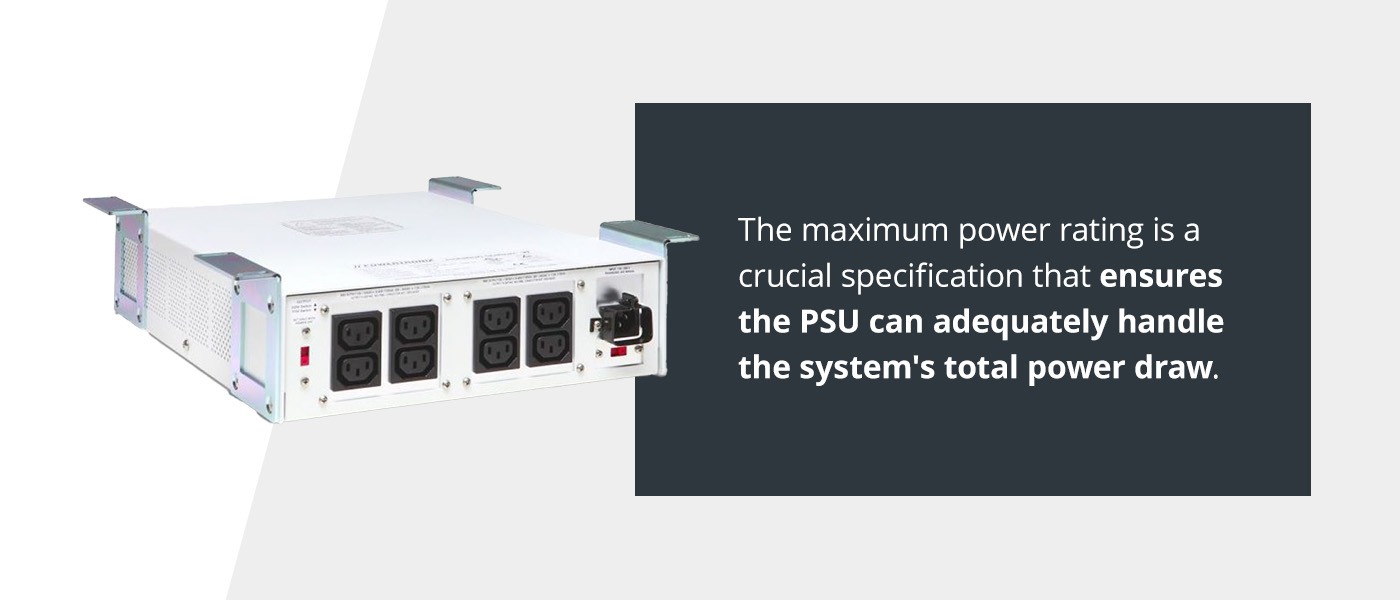

The maximum power rating is a crucial specification that ensures the PSU can adequately handle the system's total power draw.
The "W" rating on a power supply indicates its wattage — the higher the number, the more power it can deliver. Some power supplies also have an amperage rating, indicating the maximum current the power supply can provide at a given voltage. You can calculate the max output rating by multiplying the amperage by the voltage.
Max Output Definition — Rated Power vs. Peak Power
Rated power output is the continuous output power of the PSU under the rated output and current. Your PSU should supply this power output for long periods. Peak power, or maximum power, is the maximum power value the PSU can output in a short time — usually under one second. It is usually between double or triple the rated power.
Factors Influencing Max Output Rating
Depending on your needs and application, several factors can affect a power supply's maximum output rating.
- Power supply design: A PSU's design significantly affects its max output rating. The quality of the components, cooling mechanisms and overall build all influence the power the PSU can reliably deliver.
- Efficiency rating: Less efficient power supplies waste more energy through heat. Higher percentages indicate a PSU can operate closer to its max output rating while maintaining safety.
- Voltage regulation: A power supply must regulate its output voltage under varying load conditions. A well-regulated PSU can maintain stable output voltages under different loads, necessary for reliable performance at its max output rating.
- Current capacity: PSU components' current handling capacity directly affects the max output rating. When the transformers, capacitors and transistors have higher current-handling capabilities, the power supply can deliver consistently without overheating.
- Cooling system: Efficient cooling is critical for maintaining safe temperature limits in a power supply, especially at high output levels. A PSU's cooling system can determine how much power the supply can deliver without posing safety risks.
Selecting the Ideal Power Supply
Choosing the appropriate power supply for your application involves understanding how best to match PSU specifications with your requirements. Pay attention to the following criteria when deciding.
- Voltage: Your input and output voltages can vary depending on your application. A custom power supply may be better if your input voltage requirements are specific to your application.
- Wattage: Too much wattage can decrease power supply efficiency, while an underpowered PSU will battle to support your system. Opt for a power supply with slightly higher wattage than your system needs to power your equipment under heavier loads.
- Operating environment: Consider the conditions in which your PSU will operate and look for specifications that ensure enough ventilation, cooling and protection from environmental contaminants.
- Efficiency rating: The higher your PSU's efficiency rating, the better your power consumption. Look for a high efficiency rating to reduce your overall operating costs.
