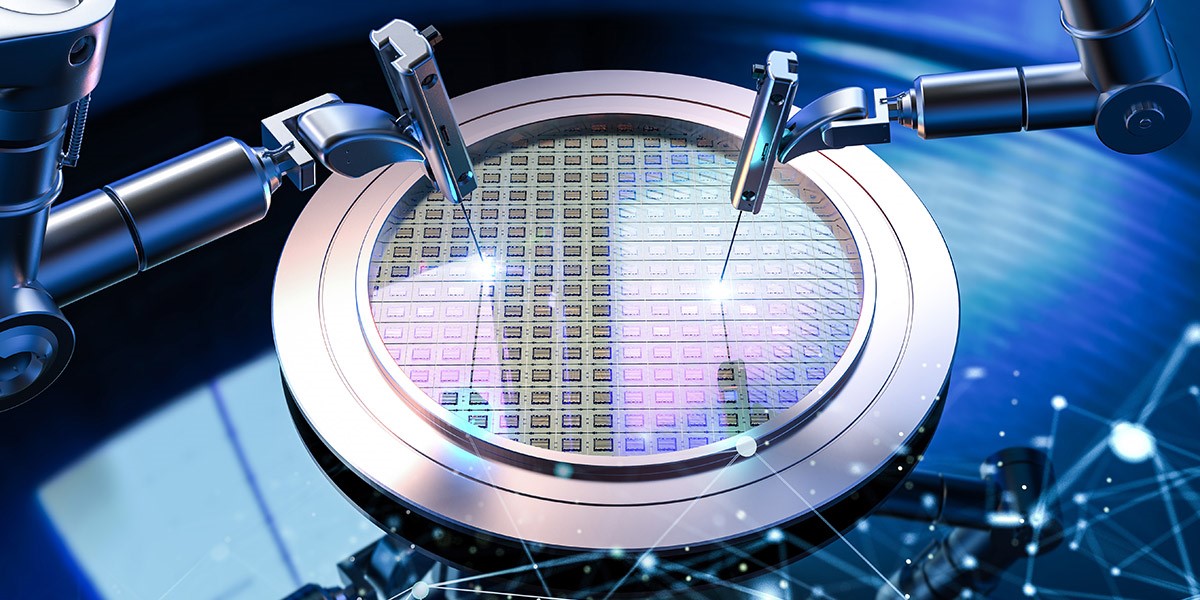

A circular object with a grid and a few objects in it

Description automatically generated with medium confidence

What Are E-Chucks?

Electrostatic chucks (e-chucks) are crucial components used across various industries, from semiconductor production to aerospace engineering. Precision is a top priority in these demanding operations, and that is where e-chucks shine. These devices utilize electrostatic force — often powered by specialized e-chuck power supplies — to hold objects in place during manufacturing processes and ensure their stability. 

Explore the role of e-chucks in today's high-tech landscape with the professionals at Astrodyne TDI. 

How do E-Chucks Work?

Electrostatic chucks (e-chucks) are widely utilized in high-tech manufacturing processes. Their primary role is securely holding items like silicon wafers during complex fabrication processes. E-chucks operate on the electrostatic force, which leverages opposing electrical charges' attraction to grip the object in place.

The components at the heart of an e-chuck are a dielectric layer and an electrode layer. The dielectric layer is the surface where the object is placed, while the electrode layer underneath applies the voltage required to generate the electrostatic force. This force provides a firm grasp without mechanical clamps or vacuum suction.

The functionality of e-chucks is closely tied to the power supplies that drive them. E-chuck power supplies provide the voltage required to generate the electrostatic field. This generated energy  allows the chuck to exert the desired force on the object. These power sources are critical in maximizing the e-chuck's performance and dependability in various manufacturing environments.

Types of E-Chucks

E-chucks come in various types, each tailored to specific applications and requirements in high-tech industries. There are two major categories of e-chucks.

Coulombic E-Chucks

Also known as DC chucks, Coulombic e-chucks work based on Coulomb's law of electrostatic attraction. These chucks generate an electrostatic force proportional to the product of the charges and inversely proportional to the square of the distance between them. 

In simple terms, a DC voltage is applied to the electrode which induces an opposite charge on the object to be held — usually a semiconductor wafer. Due to the opposing charges between the electrode and the wafer, the clamping pressure required to flatten and hold the wafers is generated. This clamping pressure delicately holds the wafer in place during various manufacturing processes..

Coulombic e-chucks are widely used in semiconductor fabrication processes, particularly lithography and etching. These processes typically require a high degree of accurate positioning and stability.

Johnsen-Rahbek E-Chucks

Johnsen-Rahbek (JR) e-chucks differ from Columb chucks in that they use alternating current voltage to create a brief high-conductivity condition on the surface of the dielectric material. This unique feature provides a stronger grip on a workpiece, making it ideal for applications that require additional hold. While Columb chucks are held in place purely by the field and are affected less by microscopic gaps, J-R chucks require contact because they rely on current to flow. This generates more pressure across the surface but is dependent on having consistent contact. In areas where the surface isn’t making contact due to imperfections, J-R chucks may not hold the wafer in place (the scale is microscopic).

JR chucks are commonly used in semiconductor manufacturing processes that involve handling delicate materials or substrates, such as creating flat-panel displays or integrated circuits.

Understanding the differences between the types of e-chucks is essential for selecting the most suitable power option for your specific applications.

Applications of E-Chucks

Various high-tech industries have a demonstrated need for e-chucks to accomplish specific manufacturing goals.

Semiconductor Manufacturing

In semiconductor fabrication, e-chucks are indispensable for securely holding delicate substrates during manufacturing. They provide precise positioning and stability, critical for lithography, etching and other semiconductor chip manufacturing processes. 

The semiconductor industry relies on e-chucks to keep the wafer intact during fabrication, ensuring high-quality chip production.

Flat Panel Display Industries

E-chucks are also essential in producing flat panel displays such as LCDs and OLEDs. These displays require precise handling of glass substrates throughout production, including for deposition, patterning and inspection. 

A close-up of a metal surface

Description automatically generated

E-chucks provide the necessary stability and uniform clamping force to ensure accurate alignment and deposition of thin-film layers on glass substrates. With e-chucks, manufacturers have a much easier time achieving their desired level of precision and uniformity.

Other Industries

E-chucks serves applications in numerous sectors that require precision placement and stability. For example, in robotics, e-chucks hold and manipulate objects during automated manufacturing processes. Their non-mechanical  clamping and fine control allow them to handle numerous materials without inflicting damage or deformation. 

In the realm of nanotechnology, e-chucks play a crucial role in nanofabrication processes that demand utmost precision and control in handling nano-scale objects. The beauty lies in their ability to secure materials without the need for physical apparatus, saving valuable space and enabling fabrication across the entire surface effortlessly.

The role of e-chucks in semiconductor applications — as well as in other technology-focused sectors — is clear. Their ability to securely hold objects with precision and stability fulfills the need for reliable manufacturing processes in these industries. 

7 Benefits of Using E-Chucks 

E-chucks offer many benefits, making them indispensable tools in manufacturing processes. Here are seven of these advantages:

  1. Non-mechanical clamping: E-chucks offer a unique approach to securing objects by harnessing electrostatic force, eliminating the need for physical pressure like traditional mechanical clamps. This innovative non-mechanical clamping method not only safeguards delicate materials but also saves valuable space by maintaining contact without bulky clamping mechanisms.
  2. Uniform clamping force: E-chucks provide a consistent and stable clamping force across the entire surface of the object, ensuring a secure grip and stability. Their ability to uniformly flatten wafers is exceptional, surpassing the performance of vacuum clamps which often struggle to achieve a flat surface. This uniformity is crucial for maintaining the integrity and flatness of substrates throughout the entirety of the manufacturing processes.
  3. Temperature control: Another notable advantage of electrostatic chucks is the capacity to control temperature during manufacturing. E-chucks use electricity to heat or cool the substrate as needed. This ability ensures optimal processing conditions and reduces thermal stress on sensitive materials.
  4. Versatility: E-chucks are highly adaptable, accommodating various materials, forms and sizes. Whether it's holding semiconductor wafers, flat panel displays or fabric materials, e-chucks provide versatile clamping solutions.
  5. Reduced particle contamination: E-chucks minimize the risk of particle contamination in clean room environments by eliminating the need for physical touch with the object. This capability is critical in semiconductor manufacturing because even minute particles can impact chip performance and yield.
  6. Enhanced productivity: E-chucks can help increase industrial productivity by offering secure and stable clamping. Their precise control and reliability minimize downtime due to material handling errors. As a result, e-chucks provide greater efficiency.
  7. Cost-effectiveness: Despite the initial investment needed for e-chucks being higher than traditional mechanical clamps, their long-term cost-effectiveness shines through. They significantly reduce material wastage, boost process yields, and come with lower maintenance expenses compared to vacuum chucks. Moreover, the incorporation of monitors and sensors provides real-time performance data to operators, enabling improved maintenance scheduling and operational efficiency.

Future Prospects and Innovations

As technology continues to evolve, so too does the field of e-chucks. With ongoing research and development, we may expect exciting advancements and prospects. 

One trend in e-chuck technology is integrating smart features and advanced sensors. These features allow for real-time monitoring and feedback during manufacturing processes. This enhanced connectivity may help with predictive maintenance and optimization.

Additionally, there may be a growing interest in using e-chucks beyond typical manufacturing industries. For example, in biotechnology, e-chucks can be used in tissue engineering and regenerative medicine. Biotechnology requires precise handling and manipulation of biological materials.

Looking ahead, integrating e-chucks with new technologies like artificial intelligence (AI) and machine learning holds the prospect of even greater advances in precision manufacturing. AI-powered algorithms can help analyze data from e-chuck sensors in real time. This capability may optimize clamping parameters and increase process control for greater efficiency and quality.

Continued research and innovation pave the way for intriguing new applications and capabilities, and the future of e-chucks looks promising.

A black rectangular object with holes

Description automatically generated

Discover the Astrodyne TDI Advantage

For reliable e-chuck power supplies, look no further than Astrodyne TDI. With our commitment to quality, innovation and customer satisfaction, we offer customizable solutions tailored to meet the unique needs of your applications. 

From standard product platforms to modular designs, our ESCape Series power supplies deliver precise voltages, arc protection and RF-blocking filters for enhanced performance and reliability.

Ready to explore the power of e-chucks with Astrodyne TDI? Request a quote or contact us online to learn more about our tailored power solutions.
