Applications for Shielded Room EMI Filters

Shielded facility EMI filters are used across a wide range of industries where electromagnetic containment and signal integrity are critical. In MRI and medical imaging facilities, EMI filters are commonly installed in MRI scanner rooms and diagnostic imaging suites to prevent external electrical noise from interfering with sensitive imaging equipment. These filters ensure that electromagnetic interference does not enter the shielded environment through facility wiring.

Beyond medical environments, shielded room EMI filters are also widely used in commercial shielded environments such as EMC test chambers, research laboratories, radio telescope facilities, telecommunications testing labs, and data centers. These facilities rely on precise electromagnetic conditions for accurate testing, measurement, and communication performance.

In government and military applications, EMI filters are used in secure communication rooms, military command centers, mobile communication shelters, government embassies, and national security installations. In these environments, filters play a critical role in preserving shielding effectiveness, protecting sensitive data, and preventing electromagnetic leakage that could compromise system security.

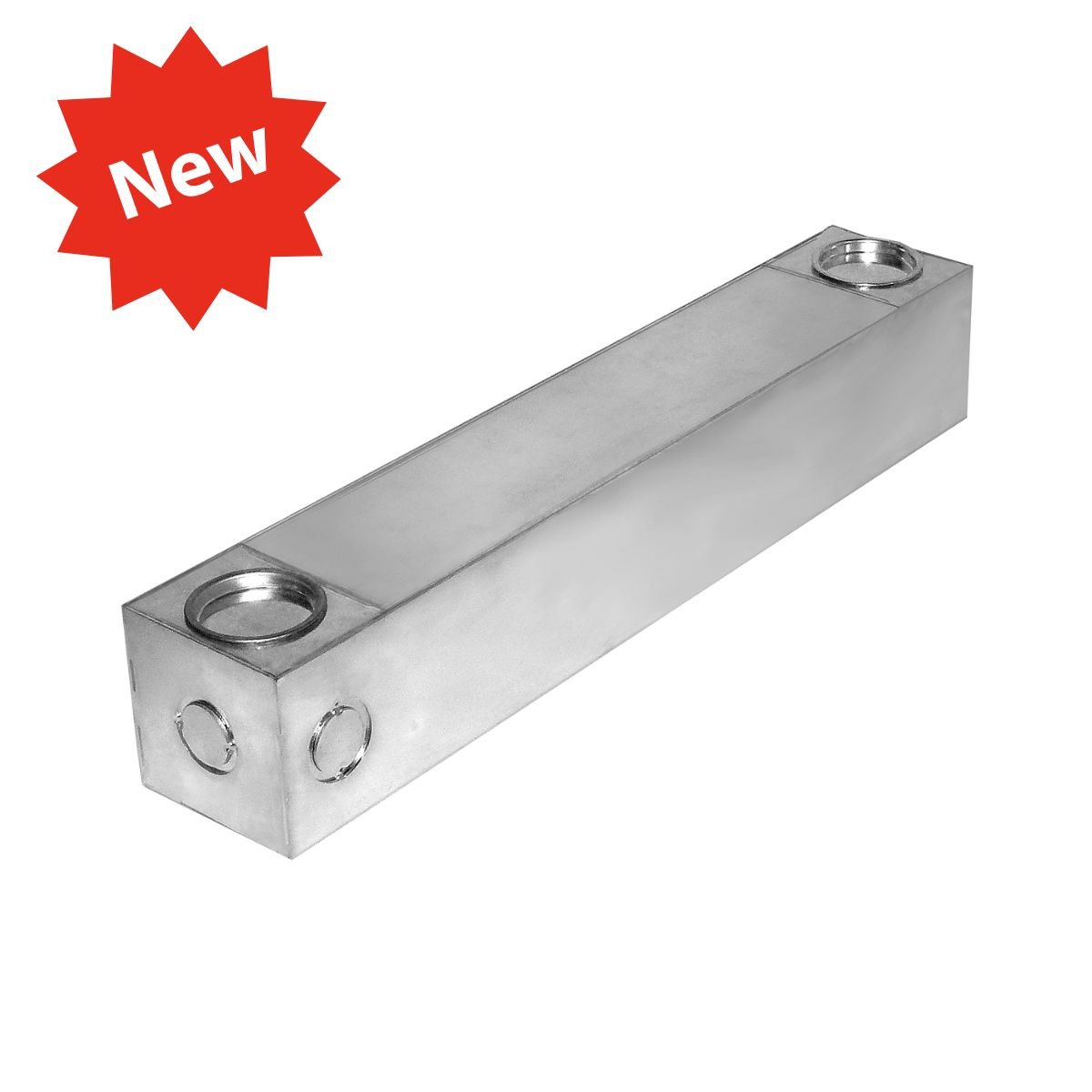

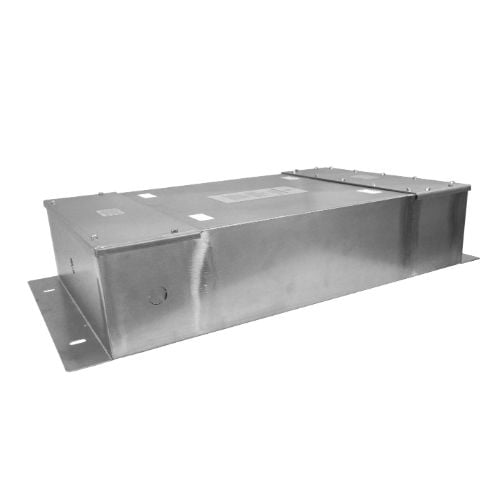

Power Line EMI Filters for MRI Rooms

Astrodyne TDI MRI facility filters are designed to provide high attenuation of electromagnetic noise while delivering reliable electrical power to equipment operating within shielded environments. These filters are engineered to block conducted EMI entering or leaving the room through power lines, ensuring the MRI system operates in a clean electromagnetic environment.

Typical filter designs feature high insertion loss performance, compact mechanical construction, and compatibility with both AC and DC power systems. They are designed for high reliability in continuous medical facility operation and are available for rapid integration into shielded room installations.

Within MRI facilities, these filters are commonly used for power circuits supplying MRI scanners, LED lighting systems, electrical instrumentation, and power outlets located inside the shielded room. Standard configurations support current ratings from 1A to 50A, voltage levels up to 277/480 VAC, and are available in single-line, dual-line, and three-line configurations, making them suitable for a wide range of facility power applications.

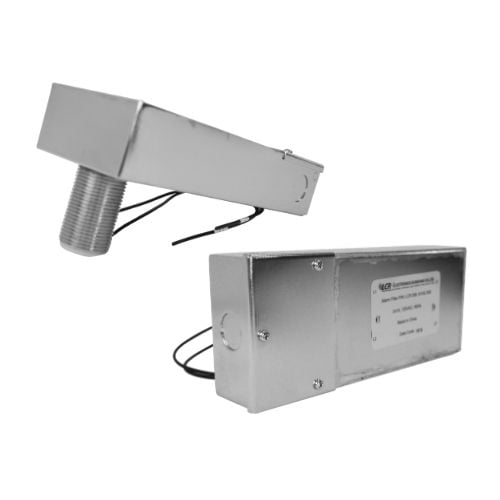

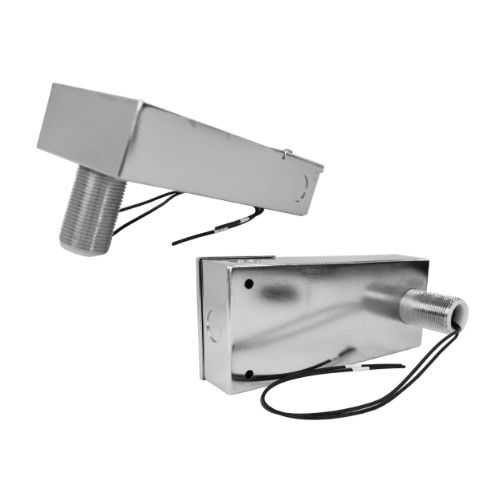

Signal Line Filters for Shielded Rooms

In addition to power filtering, shielded rooms also require EMI filters for low-voltage communication and control signals. Signal line filters allow essential communication lines to pass through the shielded enclosure without compromising electromagnetic containment.

These filters are typically used for telephone lines, data communication connections, alarm circuits, monitoring systems, and control signals required for facility operation. By filtering these signal paths, the shielded room maintains its electromagnetic integrity while still supporting necessary communications and equipment control functions.

Signal filters ensure that communication systems operate normally while maintaining the shielding effectiveness required for sensitive environments such as MRI rooms, testing chambers, and secure government facilities.

Compliance and Industry Standards

Shielded facility EMI filters must meet strict electromagnetic compatibility and safety standards to ensure reliable performance in demanding environments. These filters are typically tested and validated according to recognized international standards governing insertion loss, shielding effectiveness, and electrical safety.

Insertion loss performance is commonly measured according to MIL-STD-220 and CISPR 17, which evaluate how effectively the filter attenuates conducted electromagnetic noise across a defined frequency range. Shielding effectiveness is evaluated using standards such as IEEE 299, ASTM E1851-15, and MIL-STD-285, which verify the ability of the shielded enclosure and filter system to prevent electromagnetic leakage.

Safety and construction requirements are addressed through standards such as UL 60939-3, EN/IEC 60939-3, and the National Electrical Code (NEC). Compliance with these standards ensures that EMI filters perform reliably in both commercial and mission-critical installations.

Key Considerations When Selecting an EMI Filter

Selecting the correct EMI filter for a shielded facility requires careful evaluation of several design parameters. The intended application is one of the most important factors, as requirements may vary significantly between MRI facilities, commercial testing environments, and military installations.

Engineers must also consider the type of filter required, whether for power lines or signal circuits, as well as the electrical characteristics of the system. This includes the current rating, operating voltage, and line frequency, which may be standard 50/60 Hz power or specialized 400 Hz systems used in certain defense or aerospace applications.

Additional considerations may include country-of-origin requirements, compliance with regulatory standards, and the level of shielding effectiveness required for the facility. Proper filter selection ensures long-term reliability, maintains shield integrity, and prevents unwanted electromagnetic interference from impacting system performance.

Why Choose Astrodyne TDI for Shielded Facility EMI Filters

With more than 60 years of experience in power electronics and EMI filtering, Astrodyne TDI provides reliable solutions for shielded facilities used in medical, commercial, and defense applications worldwide. The company offers both standard and custom EMI filter designs engineered to meet the specific performance requirements of each installation.

Astrodyne TDI filters are designed to deliver high attenuation performance, long-term reliability, and flexible integration into shielded room infrastructure. Our engineering team works closely with system designers, shielded room builders, and facility engineers to ensure optimal electromagnetic performance while meeting regulatory and operational requirements.

Talk to an EMI Filter Expert

Selecting the right EMI filter for an MRI facility or shielded room can significantly impact system performance, shielding effectiveness, and regulatory compliance. Astrodyne TDI works directly with customers to help identify the correct filtering solution for their specific application.

Our team can assist with filter selection, customized shielding solutions, and technical guidance to ensure optimal electromagnetic performance. Contact Astrodyne TDI today to speak with an EMI filter expert and learn how we can support your shielded facility design.
