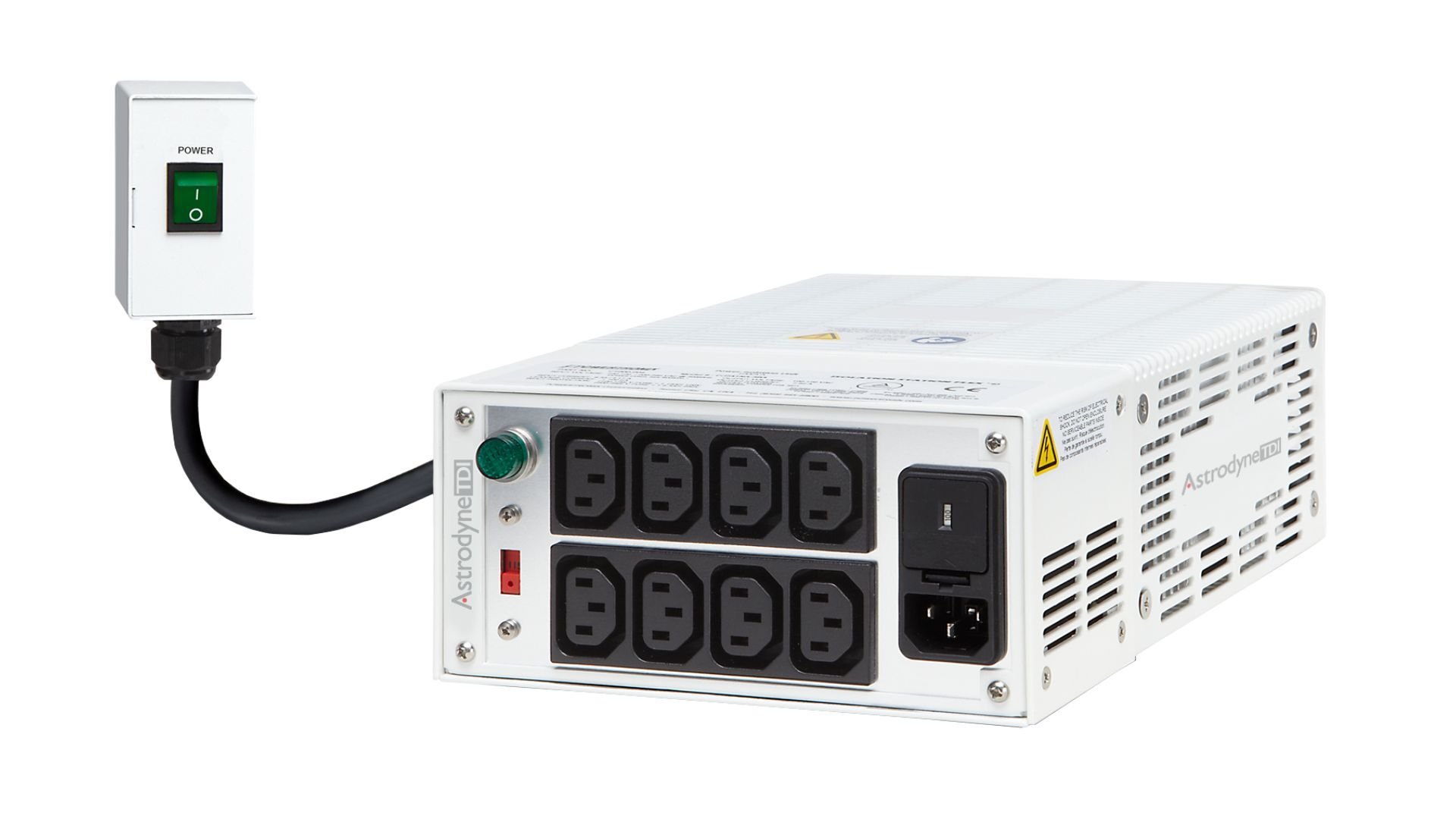

FLEX Series Isolation Stations
Astrodyne TDI’s FLEX Series Isolation Station delivers safe, isolated power in a compact, fully enclosed, plug-and-play design built for global medical applications. With worldwide voltage compatibility, modular inlet and outlet options, remote ON/OFF capability, low leakage performance, and full IEC 60601 medical safety approvals, the FLEX Series simplifies system integration while reducing regulatory burden, design complexity, and time to market.
Modular, Medical-Grade Power Isolation, Ready to Deploy
Designed to support faster system deployment and global compliance, the FLEX Series offers configurable input and output voltages from 100 to 240 VAC with modular NEMA, IEC 320, or Schuko inlet and outlet options. Low leakage performance helps eliminate ground loop issues, while features such as external outlets, remote ON/OFF control, and an integrated equipotential stud enhance safety and usability in clinical environments. Pre-certified to IEC 60601 and recognized by UL, cUL, TÜV, CB, and CE, the FLEX Series helps OEMs reduce safety testing effort, regulatory risk, and overall cost to launch complete medical systems.
Features
-
Fully enclosed, plug-and-play isolation station
- Worldwide input and output voltage support (100 / 120 / 220 / 230 / 240 VAC)
- Modular inlet and outlet configurations (NEMA, IEC 320, Schuko)
- External outlet options
- Remote ON/OFF capability
- Low leakage current design
- Ground loop elimination
- Equipotential grounding stud
- Medical safety approvals (IEC 60601, UL, cUL, TÜV, CB, CE, S-Mark)
- Toroidal isolation transformer architecture
- Optional encapsulated potting
- 3-phase toroidal package options
- Custom mounting and made-to-order enclosure options
- Cost-effective design and assembly
- Integrated power management approach
- Pre-engineered, validated solution
Benefits
-
Simplifies system integration and reduces installation time
-
Enables global deployment with a single power platform
- Allows system-specific power layouts without redesign
- Improves accessibility and flexibility in carts, racks, and enclosures
- Supports centralized system control and power management
- Meets stringent medical safety requirements
- Improves system reliability and signal integrity
- Enhances patient and operator safety
- Reduces regulatory risk, cost, and time-to-market
- Delivers high efficiency, low noise, and reliable isolation
- Enables operation in harsh or demanding environments
- Ensures correct phase connection and simplified installation
- Fits seamlessly into OEM mechanical designs
- Lowers overall system cost
- Reduces space, weight, BOM, and labor by eliminating redundancies
- Shortens design cycles and accelerates product launch
Frequently Asked Questions - Isolation Stations
General Questions
Medical-grade isolation stations are commonly certified to:
- IEC / UL 60601
- UL, cUL
- TÜV / cTÜV
- CB Scheme
- CE Mark
- S-Mark (Japan)
These certifications help reduce regulatory time and cost for complete systems.
By integrating isolation, power distribution, and safety compliance into one unit, isolation stations help:
- Reduce BOM count
- Minimize wiring and labor
- Eliminate redundant components
- Shorten compliance testing and certification cycles
AstrodyneTDI's isolation stations support worldwide voltages, typically:
- 100 / 120 / 220 / 230 / 240 VAC
Both standard and customized input/output configurations are available depending on the application.
Related Isolation Station Solutions
Astrodyne TDI offers a complete portfolio of pre-engineered isolation stations designed to support a wide range of medical and sensitive electronic applications. From compact, space-constrained systems to high-power platforms, these standardized series provide proven safety, reliability, and faster time-to-market.
