Power Solutions for Medical Diagnostic & Imaging

Download Medical Diagnostic & Imaging Brochure

Reliable, Scalable Power for Advanced Medical Imaging Systems

Robotic surgical systems are transforming modern healthcare, enabling surgeons to perform Medical diagnostic and imaging equipment—including X-ray, CT, MRI, ultrasound, fluoroscopy, PET, and SPECT systems—forms the backbone of modern healthcare. These technologies combine functional and anatomical data to deliver faster, more accurate diagnoses and are increasingly enhanced by AI-driven image processing and analytics.

Astrodyne TDI designs and manufactures medical-grade power solutions that support the demanding electrical, safety, and reliability requirements of diagnostic and imaging platforms—from compact ultrasound carts to high-power CT and MRI systems.

Power Requirements for Medical Imaging & Diagnostics

Medical imaging systems span a wide range of power levels and electrical architectures, depending on modality and system complexity. X-ray systems typically require approximately 10–50 kW, while CT scanners can demand power levels exceeding 120 kW, and MRI systems often draw 25–80 kW or more during scan cycles. These systems are commonly installed on 480 V three-phase power infrastructures, using either WYE or Delta configurations, and must meet stringent operational requirements. Critical considerations include compliance with IEC 60601-1 medical safety standards, ultra-low leakage current, and effective EMI control to protect patients and sensitive electronics, dedicated circuits with specialized connectors, and reliable backup power through UPS systems to ensure safe shutdown and uninterrupted clinical operation. Astrodyne TDI addresses these challenges with integrated, system-level power architectures purpose-built for demanding medical imaging environments.

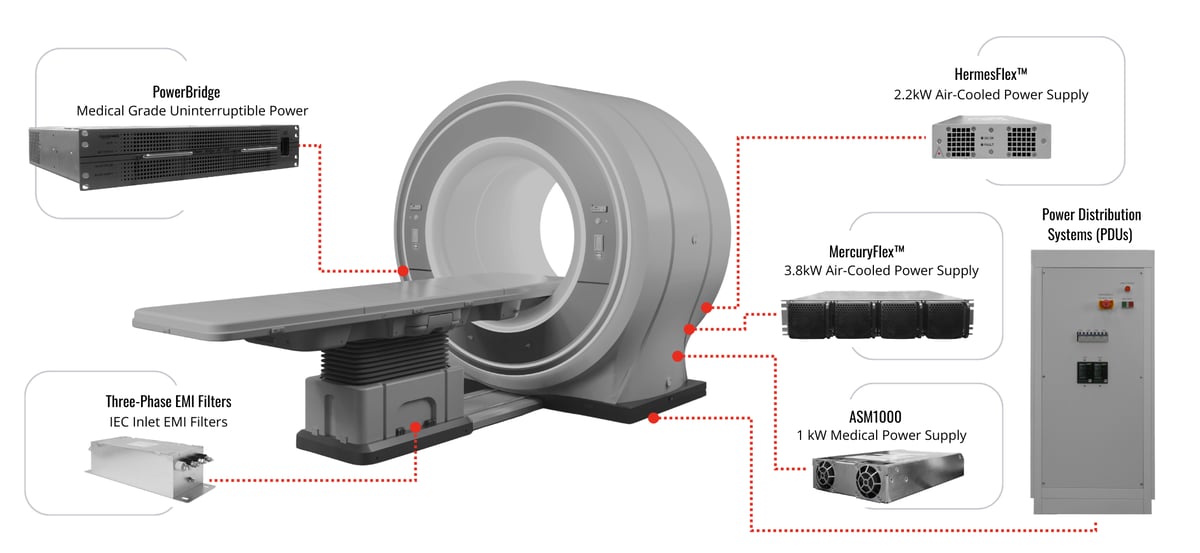

Explore Medical Imaging Power Architectures

Custom Multi-Output Power for Handheld Surgical Robotics

Astrodyne TDI partnered with a leading medical technology company to design a custom multi-output power assembly for a handheld robotic surgical platform. The solution supported a wide AC input range with medically certified outputs at 48 V, 12 V, and 5 V standby, while providing advanced power status monitoring and remote control features to ensure reliable operation in clinical environments.

Read the full case study

Power Solutions for Medical Diagnostics & Imaging Equipment

Gain a visual overview of the power architectures that underpin modern medical imaging systems. This infographic highlights typical power requirements for X-ray, CT, MRI, ultrasound, and nuclear imaging equipment, along with key considerations such as IEC 60601-1 safety compliance, EMI control, backup power, and system-level integration. Download the infographic to see how Astrodyne TDI’s PDUs, high-power conversion platforms, UPS solutions, and EMI filters support reliable, scalable medical diagnostic and imaging systems.

Download the Infographic

Why Medical OEMs Choose Astordyne TDI

Astrodyne TDI power solutions help robotic system designers:

IEC 60601-1 certified medical power expertise
Proven success across diagnostic and imaging platforms
Fully integrated, system-level solutions—not just components
Custom and semi-custom designs without third-party subcontractors
Optimized cost, lead time, and long-term reliability

Power Confidence for Medical Imaging Innovation

From AI-enhanced diagnostics to next-generation imaging platforms, Astrodyne TDI provides the power foundation that medical OEMs rely on—safe, scalable, and engineered for performance.

Talk to our medical power experts today to discuss your diagnostic or imaging system requirements.
