Precision Power. Extreme Speed. Total Control.
Introducing the AWG High-Speed Pulse Converter by Astrodyne TDI
The AWG delivers next-generation pulse control for semiconductor lasers, beam steering, and plating systems that demand high slew rates, low ripple, and fast, programmable response.
What Is the AWG?
The AWG (Arbitrary Waveform Generator) is a 2 kW high-speed pulse DC-DC converter designed for applications requiring rapid and precise control of voltage or current. Operating from a DC input, it delivers slew rates exceeding 300V/ms and 200A/ms—ideal for semiconductor manufacturing, advanced laser drivers, and high-frequency pulse plating.
The AWG enables programmable, bi-directional output waveforms and real-time control over voltage and current delivery.
Why AWG? Key Performance Benefits
Feature |
Benefit |
|---|---|
| ±45V to ±200V output range | Supports both low-voltage and high-voltage applications |
| Up to ±50A output current | Scalable for large or parallel load systems |
| >300V/ms, >200A/ms slew rates | Ideal for pulsed laser, beam modulation, and fast-transition systems |
| 5 kHz Output Frequency | Delivers high-speed, accurate waveform generation |
| <1ms digital control latency | Real-time waveform agility |
| < 100 mV RMS ripple | Ultra-clean output for sensitive loads |
| CAN Bus + 0–10V analog input | Seamless integration with digital or analog controllers |
| 1U rack-mount ready, 3.5 lbs | Compact, lightweight, and scalable |
Ideal Applications
-
Semiconductor Laser Drivers – Rapid, precise pulsing with minimal temperature drift
-
Pulse Plating Systems – Controlled bi-polar outputs for electrochemical precision
-
Beam Steering & Optics Modulation – Smooth waveform control for accuracy and focus
-
Medical Lasers – Fast and programmable power for surgical and diagnostic devices
-
Defense & Aerospace – Pulse power for high-energy applications

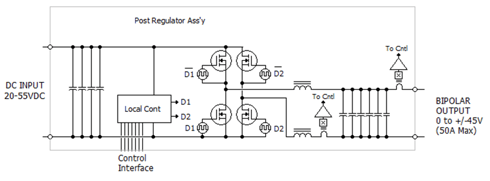

System Architecture Diagram
Built for Critical Applications
-
100% HASS Tested
-
Designed per NAVSO P-3641A military-grade derating
-
Minimal audible noise via variable speed fan
-
Optional hot-swap capable chassis integration
Get Started Now
Astrodyne TDI’s AWG is production-ready and field-proven in demanding applications.
Need a Custom Configuration?
We can tailor AWG modules and front-end AC-DC supplies to meet your voltage, current, and control needs—scalable for OEM production or experimental systems.
