High-voltage power supplies often need isolation to ensure safety and prevent electrical shocks. Isolation ratings indicate how well a power supply separates its input and output circuits, typically measured in volts. Isolation ratings vary depending on the application and safety requirements. The higher the isolation rating, the better its protection against electrical hazards.
When selecting power supplies, you must consider these ratings and understand the available types. Here are answers to your questions about advantages and considerations to help you appreciate the distinctions.
What Are High-Voltage Power Supplies?
High-voltage power supplies are specialized units that convert low-voltage inputs to higher voltages ranging from 1kV to 360kV, commonly up to 500kV. They can operate from AC or DC input voltages. Compared to low-voltage supplies, high-voltage units are more intricate and cater to applications requiring significant power inputs and precise control of voltages and currents.
The complex design involves different components to achieve stable high-voltage outputs, ensure safety and prevent insulation breakdown.
- Transformer: This device steps the input voltage up or down to match the desired output voltage. It also isolates the rest of the electronic system from the input electricity.
- Rectifier: Alternating current converts to direct current by rectifying the voltage in the forward direction.
- Filter: Filter components, like capacitors and inductors, smooth out the DC output voltage by reducing ripple and noise and suppressing the AC component, which could damage the load.
- Regulator circuits: These circuits provide and maintain a stable output voltage despite fluctuations in the input load.
High-voltage power supplies are indispensable components in electrical systems where precise control, stability and high-voltage requirements are necessary for successful operations. They serve specialized equipment from diverse industries, such as medical devices, scientific instruments and industrial machinery.
What Is a Grounded Power Supply?
A grounded power supply has one of its output terminals connected to the earth or ground reference point. This grounding provides a path for excess current to flow safely to the ground in the event of a fault, helping to protect users and equipment from electrical shocks.
Residential and commercial electrical systems where safety is a primary concern commonly use grounded power supplies. The grounding stabilizes the voltage levels, reduces electromagnetic interference and ensures proper functioning of the equipment connected to it.
Here are some advantages of grounded power supplies.
- Safety: Grounded power supplies provide a path for excess current to flow safely to the ground, reducing the risk of electrical shocks. It also safeguards equipment from damage from voltage surges.
- Stability: Grounding helps stabilize voltage levels and reduce fluctuations, ensuring connected equipment perform consistently.
- EMI reduction: Grounding can help reduce EMI to improve the overall performance of sensitive electronic devices.
- Compliance: Proper grounding meets legal requirements and ensures compliance with electrical safety standards.
While grounded power supplies offer many benefits, they are not ideal in every instance due to their specific requirements. Here are some considerations.
- Limited flexibility: Grounded power supplies have limitations in uses that require isolation from the ground or where floating potentials are necessary.
- Complexity: Grounding systems can be complex to set up and maintain.
- Ground loops: Improper grounding can lead to ground loops, causing noise and interference in the system.
- Isolation concerns: Grounded power supplies may be unsuitable in environments necessitating isolation from the ground, such as with some medical or industrial equipment.
What Is a Floating Power Supply?
A floating power supply has neither of its output terminals connected to the earth or ground reference point, allowing you to operate a piece of equipment or appliance independently without a direct electrical connection to ground. Floating power supplies can connect to another power supply output on one side of the output end.
Situations requiring galvanic isolation and a floating voltage use floating power supplies. Industrial settings frequently prefer grounded power supplies for their safety features and compliance with electrical codes and regulations. However, floating power supplies are beneficial in applications necessitating floating potentials or isolation from ground. Other common applications include medical equipment, laboratory instruments and communication systems.
Benefits of floating power supplies include:
- Isolation: Floating power supplies reduce the risk of electrical shocks by preventing ground loops with their galvanic isolation.
- Flexibility: The lack of a direct ground connection allows for versatile applications.
- Noise reduction: Floating setups can reduce noise interference in sensitive electronic systems by isolating them from ground potential differences.
- Safety: Floating power supplies can offer enhanced safety by eliminating the risk of ground faults.
As with grounded power supplies, floating power supplies have the following considerations.
- Complexity: Implementing and troubleshooting floating power supplies can be more complex due to the need for careful isolation and proper grounding techniques.
- Ground reference issues: The lack of a ground reference can make it challenging to interface with grounded equipment or systems, requiring additional precautions for compatibility.
- Careful design: Without a direct connection to ground, fault detection and protection mechanisms must ensure safe operation in case of failure.
Equipment Compatibility and Industry Standards

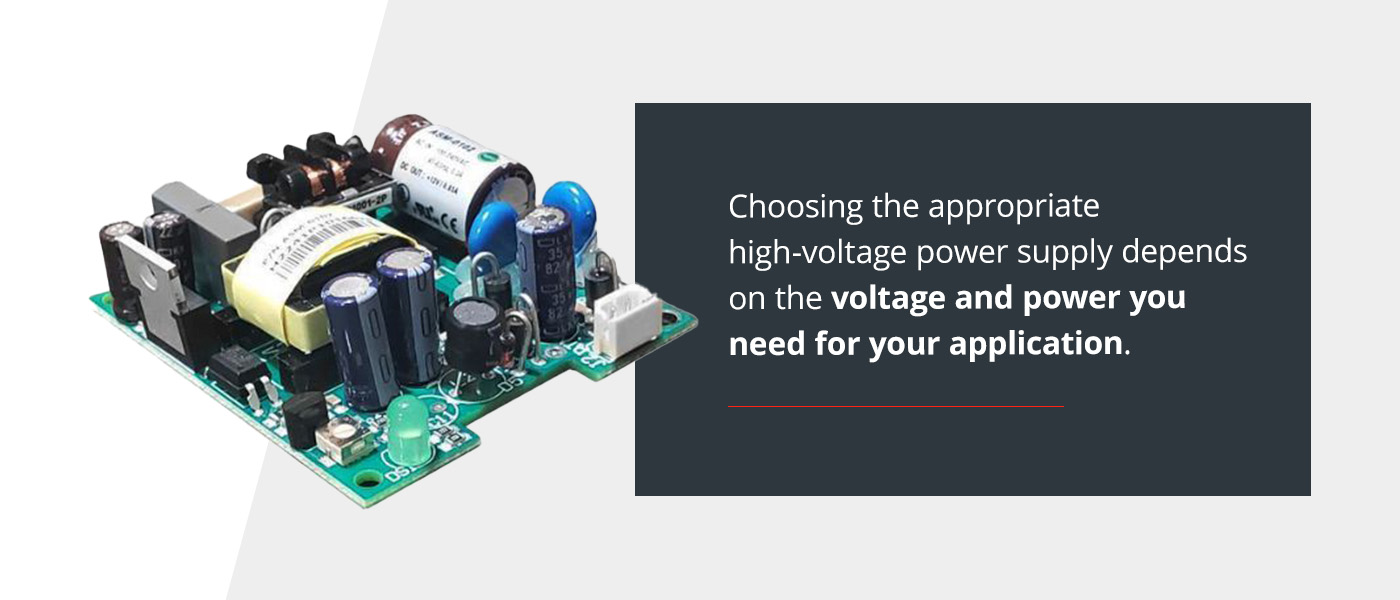

Choosing the appropriate high-voltage power supply depends on the voltage and power you need for your application. You must also ensure compatibility between these power supplies and your connected equipment:
- Input and output voltage range
- Power capacity
- Maximum output current
- Tolerance levels
- Space requirements
- Efficiency ratings
Consider industry standards and compliance related to isolation ratings and high-voltage systems. Adhering to these specifications from the International Electrotechnical Commission, Underwriters Laboratories and Institute of Electrical and Electronics Engineers mitigates risks associated with electrical faults and promotes a safe working environment.
- IEEE 1100: The IEEE's guide recommends proper grounding practices to minimize EMI and ensure system reliability.
- IEC 60601-1: Specifically for medical electrical equipment and systems, this standard includes guidelines for insulation, grounding and protection against electric shock.
- IEC 60950-1: This standard covers safety requirements for information technology equipment, including power supplies.
- IEC 61010-1: The IEC outlines electrical equipment safety requirements in high-voltage environments for measure, control and laboratory use.
- IEC 61800-5-1: This standard covers safety aspects related to electrical, thermal and energy hazards in high-voltage systems used in industrial applications.
- UL 60950-1: This UL standard ensures compliance with safety requirements related to high-voltage isolation and protection against electric shock.
Whether you use grounded or floating power supply systems, you should complete regular compliance checks to ensure adherence to these standards.
Find Power Supplies for High-Voltage Applications From Astrodyne TDI
Selecting the correct high-voltage power supplies will prevent electrical hazards by separating the input and output circuits. In particular, power supplies with high isolation ratings are necessary to maintain safety standards in high-voltage applications.
At Astrodyne, we have power supplies that fit our clients' needs in various markets. We also offer custom power supplies and solutions to handle extreme environments while ensuring compliance with stringent industry regulations.
If you need more support on high-voltage power supply solutions, reach out to our team for expert advice today.
