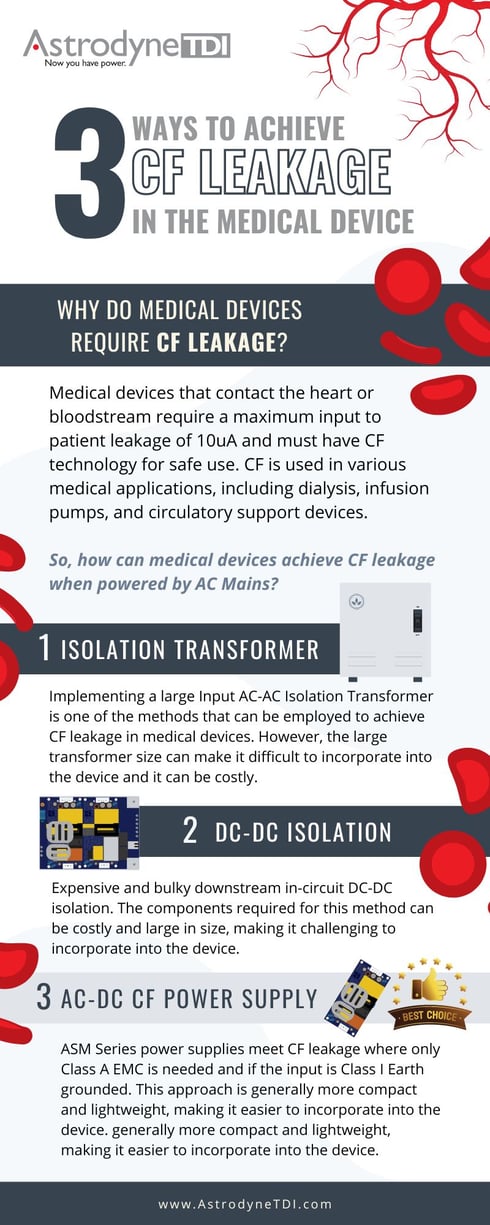

Cardiac Floating Leakage: 3 Ways to Achieve CF Leakage Infographic


Ways to Achieve CF LeakageFor medical devices that make contact with the heart and bloodstream, meeting Cardiac Floating Leakage (CF) standards is essential. These standards dictate that a CF device must have a maximum input to patient leakage of 10uA, ensuring patient safety and device effectiveness. Applications for CF leakage standards include medical devices used in cardiac mapping and ablation, dialysis, infusion pumps, blood warmers, and circulatory support devices such as LVAD, iVAS, and TAH.

What it needs…

CF <10uA patient leakage at the Medical Device/Applied Part refers to the maximum allowable electrical current that can leak from the medical device to the patient. This standard ensures that the device is safe and does not pose any risk to the patient's health. Medical devices in contact with the heart and bloodstream must adhere to these standards to prevent any harm to the patient. CF leakage is a critical factor that needs to be considered when designing Medical Devices that use AC Mains power. By incorporating CF leakage standards into the design of medical devices, manufacturers can design reliable and effective devices that improve patient outcomes.


When designing medical devices for home use, it is crucial to consider additional safety standards beyond Cardiac Floating Leakage (CF). One such standard is Class II input, which requires a double layer of insulation to protect the patient from electrical shock. Class B EMC Medical - Cardiac Floating Devices also ensures that the device does not emit electromagnetic interference that could interfere with other electronic equipment in the patient's home. These standards are essential to ensure the safety and well-being of patients using medical devices in their homes. Therefore, it is important for designers to carefully evaluate all applicable safety standards and incorporate them into the design of medical devices for home use. By prioritizing safety and adhering to industry standards, medical device manufacturers can create reliable and effective devices that improve patient outcomes in clinical settings and at home.

To achieve CF leakage, three methods can be used. These methods are crucial to ensure the safety of patients and healthcare providers. Therefore, it is essential to carefully evaluate the options available and determine the best approach for your specific device. The methods include using a large Input AC-AC Isolation Transformer, investing in expensive and large size of downstream circuit DC-DC Isolation, or utilizing an AC-DC CF Power Supply. Each method has its own advantages and disadvantages, and it is up to the designer to weigh the pros and cons and make the best decision for their device. By considering the options available and prioritizing safety, designers can create Medical Devices that are reliable and effective in improving patient outcomes.

The three methods of achieving CF leakage

  1. Using a large Input AC-AC Isolation Transformer is one of the methods that can be employed to achieve CF leakage in Medical Devices. This method involves using a transformer that isolates the input power from the output power, eliminating any possibility of electrical shock or harm to the patient. The transformer is typically large in size due to the high voltage and current ratings required to power the device. While this method effectively reduces CF leakage, it also has its drawbacks. The large size of the transformer can make it difficult to incorporate into the device and be expensive. Additionally, the transformer can generate heat, which can be a concern in some applications. Despite these challenges, using a large Input AC-AC Isolation Transformer remains a viable option for achieving CF leakage in Medical Devices, and it is up to the designer to weigh the benefits and drawbacks and determine if it is the best approach for their specific device.
  2. Another method that can be used to achieve CF leakage in Medical Devices is investing in expensive and large size of downstream in-circuit DC-DC Isolation. This method involves using a series of components to isolate the input power from the output power, ensuring no electrical shock or harm to the patient. The components required for this method can be costly and large in size, making it challenging to incorporate into the device. Additionally, this method can generate heat, which can be a concern in some applications. While this approach can effectively reduce CF leakage, it is important for designers to consider the cost and size implications before choosing this method for their Medical devices. Ultimately, it is necessary to prioritize safety and consider all available options when designing Medical Devices to ensure they are reliable and effective in improving patient outcomes.
  3. Our AC-DC CF Power Supply is another method that can be utilized to achieve CF leakage in Medical Devices. This approach involves using a power supply specifically designed to reduce CF leakage. The AC-DC CF Power Supply incorporates various safety features, such as isolation transformers, to ensure that the input power is completely isolated from the output power, eliminating the risk of electrical shock or harm to the patient. Compared to the other methods, the AC-DC CF Power Supply is generally more compact and lightweight, making it easier to incorporate into the device. Additionally, it generates less heat, which is a significant advantage in certain applications. While this method can be more costly than the other methods, it is often considered the most efficient and effective approach to achieving CF leakage in Medical Devices. Ultimately, it is important for designers to evaluate all available options and prioritize safety when designing Medical Devices to ensure that they are reliable and effective in improving patient outcomes.

In conclusion, ensuring Cardiac Floating Leakage (CF) standards are met is crucial when designing medical devices that interact with the heart and bloodstream. These standards aim to prevent patient harm and ensure devices are safe, reliable, and effective in improving patient outcomes. Designers can achieve CF leakage in medical devices by using a large Input AC-AC Isolation Transformer, investing in expensive and large size of downstream circuit DC-DC Isolation, or utilizing an AC-DC CF Power Supply. Each method has its own advantages and drawbacks, and it is up to the designer to determine the best approach for their specific device. By prioritizing safety and considering all available options, designers can create reliable and effective medical devices to improve patient outcomes. As such, medical device manufacturers should carefully evaluate and incorporate all applicable safety standards into their designs. This will help guarantee the well-being of patients and healthcare providers, ensuring that medical devices are safe to use and provide the best healthcare possible.

For more information regarding CF leakage isolation, contact us at www.astrodynetdi.com/contact-us
